Description
Application:
Glass Sliding Door:< 150KG doors for commercial use

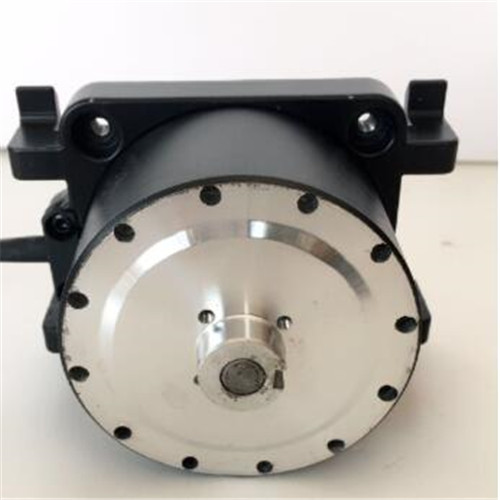

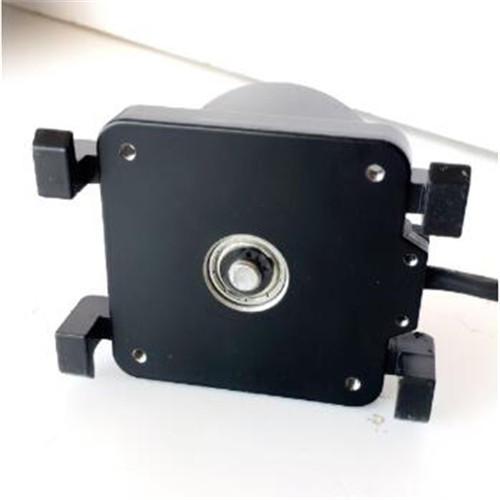

Advantage of BLDC motor system for sliding door:
Glass Sliding door: Direct Drive FOC contral, motor operates in Four-quadrant, fast reaction, can quick start and stop. No gear box, long life, maintanance free. Energy consumption reduce 30%, weight reduce 60%,size reduce 50%.
| Drive type | Input Voltage | Motor voltage | Motor model | Motor Power(W) | RPM | Max Current | Rated Torque | Max Torque(Nm) | Weight | Application on door weight | Noise | |
| Direct drive | BLDC Motor system for Sliding door | 220V | 24V | TSL05B101 | 50 | 0-250 | 5 | 1.3 | 4 | 150Kg | 47 | |
| i=5.3 Gear box | 40Nm Motor | 220V | 36V | TSG05B1 | 100 | 0-100 | 10 | 13.0 | 40 | 3.5 | 300Kg | 60 |
| i=6 Gear box | 80Nm Motor | 220V | 36V | TSG05B2 | 250 | 0-120 | 20 | 20.0 | 80 | 500Kg | 60 |
